GefenToolBox HDMI / 3DTV extender po CAT-6 až 100m - GTB-HDMI-3DTV-BLK

Detailní popis produktu

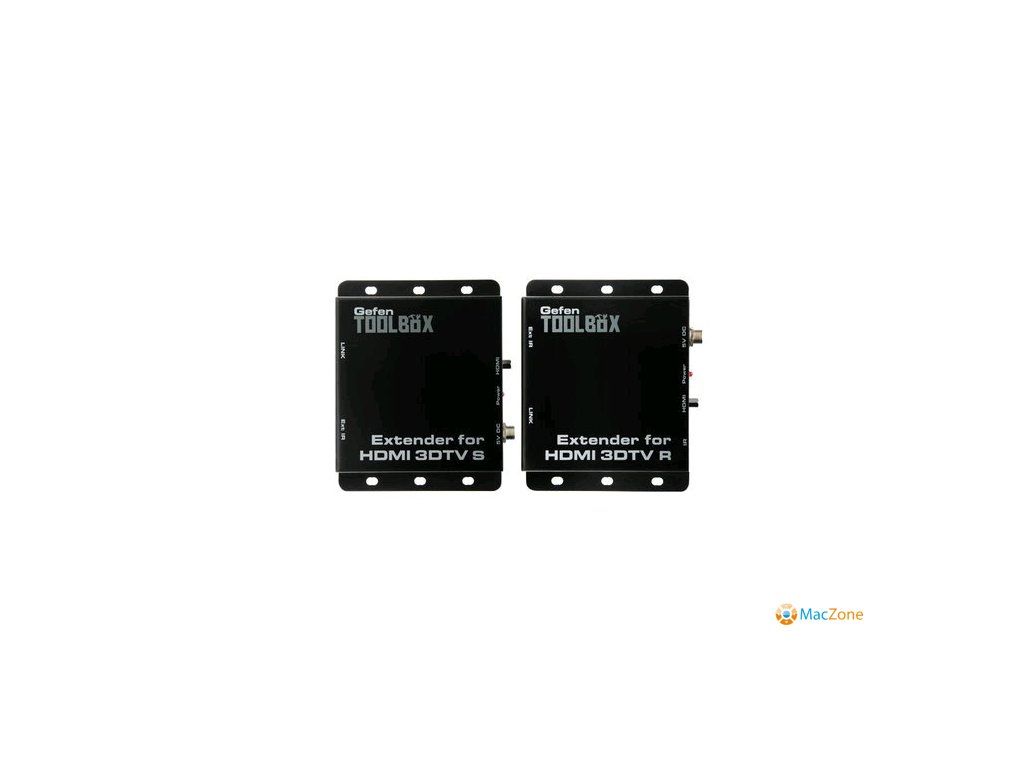

GefenToolBox HDMI / 3DTV extender HDMI signálu po stíněném CAT-5e/ CAT-6 až 100m , černá varianta . Features: The GefenToolBox Extender for HDMI 3DTV extends HDMI including multi-channel digital audio at resolutions of up to 1080p60 Full HD up to 330 feet (100 meters) away from any Hi Def source using one CAT-5 cable for the extension. This product also provides an IR back channel to control AV sources using the same CAT-5 cable extension. Using this channel with the optional RMT IR Extender, simply point an IR remote(s) of the A/V device towards the display to control Hi-Def sources as if they were located in the same room or proximity to the display. HDMI1.3 Features Supported: - 225 MHz (up to 12-bit YUV 4:4:4 @ 1080p60) - Dolby TrueHD & DTStm Master Audio - Deep Color Support (x.v.Color) - Lip-Sync Pass-Through - CEC Pass-Though - 3DTV Pass-Through - Extends HDMI at 1080p up to 330 ft (100 m). - Supports HDMI 1.3 with 3DTV. - Internal / External EDID Management. - Locking power connectors. - Built-in IR backchannel allows IR remote control of Source devices. - Metal enclosure improves RF shielding. - All-digital signal transmission for zero signal loss. - This product is HDMI and HDCP-compliant. Tech. Spec.: Video Amplifier Bandwidth: 225 MHz Input Video Signal: 1.2 V p-p Input DDC Signal: 5 V p-p (TTL) Maximum Video Resolution: 1080p, supports 3D HDMI signals HDMI Input Connector: Type A 19-pin (F) Link Connector: RJ-45 Shielded Power Indicator: LED (red) Dimensions: 11,43 cm L x 8,255 cm W x 2,54 cm H Power Supply: 5 V DC Power Consumption: 10 W per unit (max.) Operating Temperature: 0 - 40 ?C Shipping Weight: 1,0 kg Package includes: 1x Extender for HDMI 3DTV Sender Unit 1x Extender for HDMI 3DTV Receiver Unit 1x 2m Locking HDMI cable 2x 5V DC Locking Power Supplies 1x User Manual
