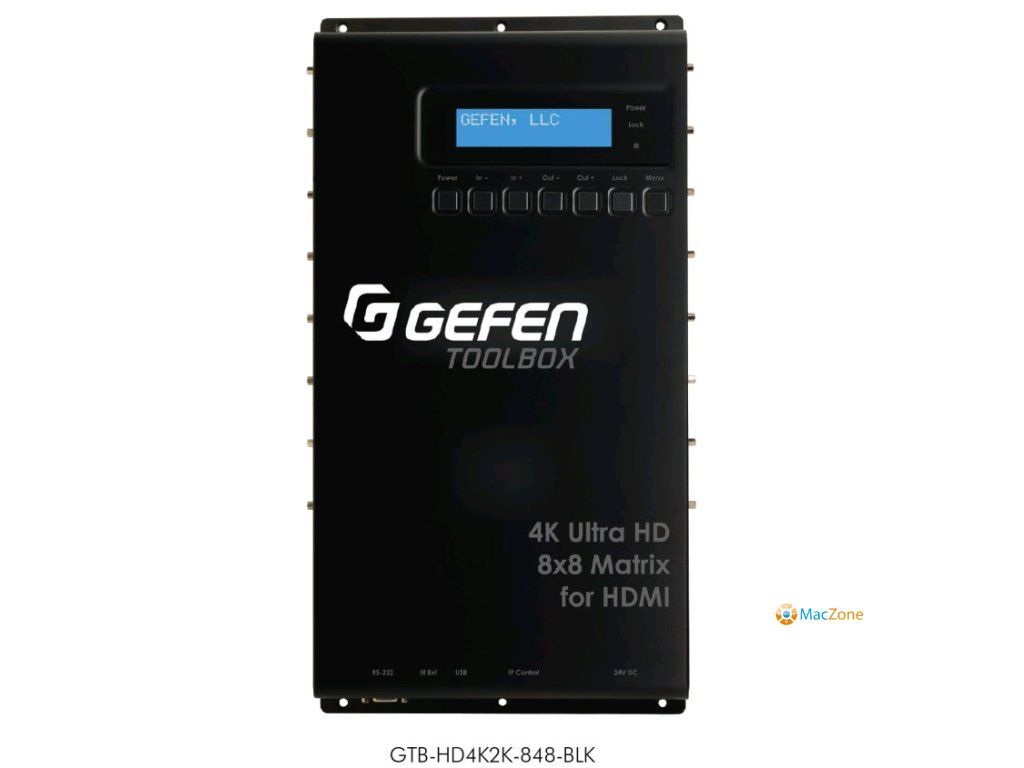

GefenToolBox 4K ultra HD 8x8 Matrix pro HDMI matice 8x8 rozlišení až po 4K

Detailní popis produktu

Produkt je EOL / end of life / GefenToolBox 4K ultra HD 8x8 Matrix pro HDMI matice 8x8 rozlišení až 4K , možnost řízení po IP. Gefen ToolBox 8x8 Matrix is a compact and lightweight alternative to rack-mounted matrixes. This HDCP 1.4 compliant matrix routes eight Ultra HD sources to any eight 4K Ultra HD displays with HDMI inputs. Resolutions up to 4K DCI (4096 x 2160 at 24 or 30 Hz 4:4:4), 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4), 1080p Full HD, and 1920x1200 (WUXGA) are supported. 3D, Deep Color, and multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) formats such as Dolby®TrueHD, and DTS-HD Master Audio™ are also passed through. The Gefen Syner-G™ software's Discovery and Show-Me features simplify initial IP configuration of this matrix. Each source can be routed to any display location, using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232, Telnet, UDP, and the Gefen intuitive and easy-to-use web server interface. An easy-to-read backlit front panel display indicates the current routing status and IP settings. Outputs of the matrix, using HDMI cables. Connect an Ethernet cable from the network to the RJ-45 connector to use the built-in web server or Telnet/UDP capability to control routing, EDID management, and other functions. Connect an RS-232 cable between an automation control device and the matrix. Connect the included power supply to the 24V DC connector on the matrix. Plug the IEC AC power cord to the power supply and to an available AC outlet. To control the matrix via IR, point the included IR remote towards the display of the unit. If matrix is not located in the line of sight of the handheld remote, attach a Gefen EXT-RMT-EXTIRN IR Extender to the IR Ext port of the matrix and install it in a location where it can receive the IR commands. If this matrix is going to be part of an IP-controlled infrastructure, use Gefen Syner-G™ to perform the initial IP configuration and setup. Routes eight 4K Ultra HD sources to eight displays Supports resolutions up to 4K (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4), 4K Ultra HD ? (3860 x 2160 @ 60 Hz 4:2:0 or 30Hz 4:4:4), 1080p Full HD, and 1920x1200 (WUXGA) HDMI 2.0 compliant HDCP 1.4 compliant Supports 12-bit Deep Color (up to 1080p Full HD) 3D pass-through Lip Sync pass-through Push button controls for Routing and Status Advanced EDID Management for rapid integration of sources and displays Supports LPCM 7.1, Dolby® TrueHD, Dolby® Digital Plus, and DTS-HD Master Audio™ Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included) RS-232 Serial interface for remote control via a computer or automation control system IP control via Telnet, UDP, and the built-in web server interface IR remote control Gefen Syner-G™ software's Discovery and Show-Me features simplify initial IP configuration Field-upgradeable firmware via web server interface Surface-mountable Specifications * Maximum Pixel Clock: 300 MHz HDMI Input Connectors: (8) Type A 19-pin female, locking HDMI Output Connectors: (8) Type A 19-pin female, locking USB Port: (1) Mini-B RS-232 serial port: (1) DB-9, female Ethernet (IP Control) Port: (1) RJ-45 Power Indicator: (1) LED, bi-color (red/green) Lock Indicator: (1) LED, (orange) Display: 2 rows, 16 characters per row Control Buttons: (7) tact-type IR Sensor: (1), located on front panel IR Extender Port: (1) 3.5mm mini-stereo jack IR Extender type: EXT-RMT-EXTIRN (not included) DC Power Connector: (1) 4-pin Power Supply: 24V DC Power Consumption: 27W maximum Operating Temperature: +32 to +122 °F (0 to +50 °C) Operating Humidity: 5% to 90% RH, non-condensing Storage Temperature: -4 to +140 °F (-20 to +60 °C) Storage Humidity: 5% to 95% RH, non-condensing MTBF: 50000 hours Dimensions (excluding connectors, W x H x D): 9.3" x 17.9" x 1.75" (236mm x 454mm x 44mm) Net Unit Weight: 3.9 lbs. (1.8 kg) Package Includes: (1) 4K Ultra HD 8x8 Matrix for HDMI (GTB-HD4K2K-848-BLK) (1) IR Remote (RMT-848IR) (1) 24V DC Power Supply (EXT-PS24U375A-6) (1) AC Power Cord (CAB-POWERCORD-XX) (1) Quick-Start Guide (QSG-GTB-HD4K2K-848-BLK)
