GefenToolBox 4K/2K UltraHD 4x4 Matrix HDMI matice GTB-HD4K2K-444-BLK

Detailní popis produktu

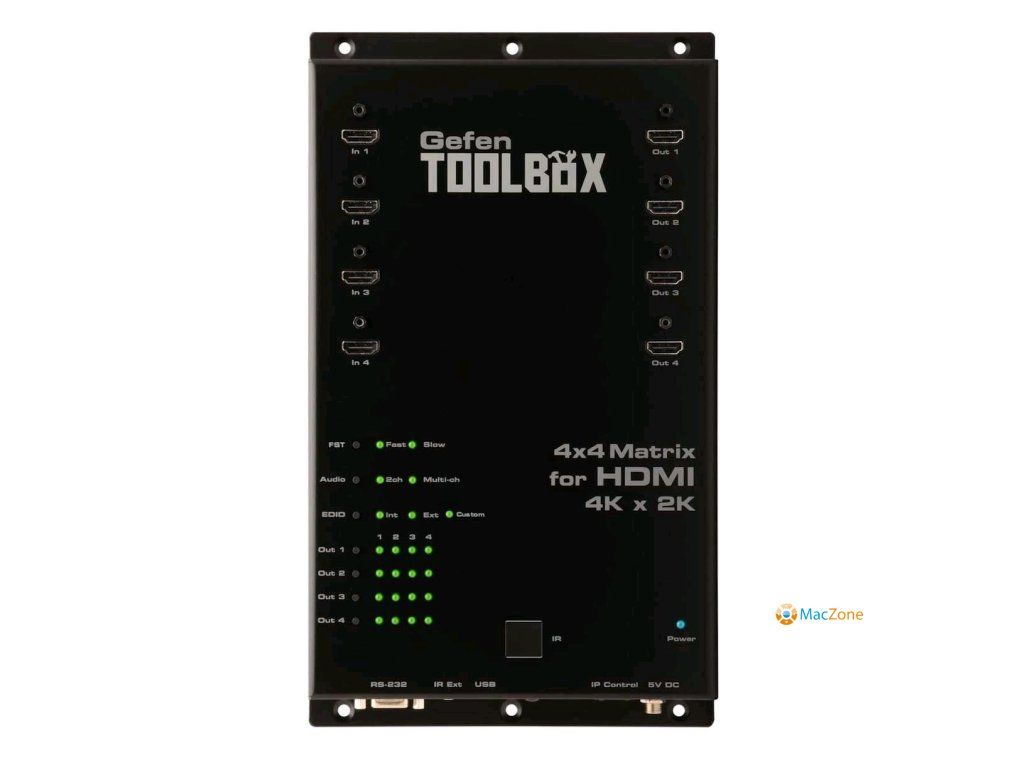

Route 4 Ultra Hi-Def sources to 4 Ultra HD dsiplays with FST, 3DTV and 4K X 2K Ultra Hi-Def support The Gefen GTB-HD4K2K-444-BLK ToolBox 4x4 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K or 1080p Full HD sources to be routed to up to four Ultra HD displays. Each Hi-Def source can be routed to either of the connected displays using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings. Vlastnosti: Maximum Pixel Clock: 300 MHz HDMI Input Connectors: (4) Type A 19-pin female, locking HDMI Output Connectors: (4) Type A 19-pin female, locking USB Port: (1) Mini-B RS-232 serial port: (1) DB-9, female Ethernet (IP Control) Port: (1) RJ-45 FST Selector: (1) tact-type, recessed push-button Audio Selector: (1) tact-type, recessed push-button EDID Selector: (1) tact-type, recessed push-button Routing Selectors: (2) tact-type push-buttons Power Indicator: (1) LED, blue FST Indicators: (2) LED, green Audio Indicators: (2) LED, green EDID Indicators: (3) LED, green Routing Indicators: (8) LED, green IR Sensor: (1), on front panel IR Extender Port: (1) 3.5mm mini-stereo jack DC Power Connector: (1) Locking type Power Supply: 5V DC Power Consumption: 13 Watts (max.) Operating Temperature: +32 to 104 °F (0 to +40 °C) Dimensions (W x H x D): 6.9" x 11.9" x 1.0" (175mm x 302mm x 26mm) Shipping Weight: 6 lbs. (2.7 kg)
