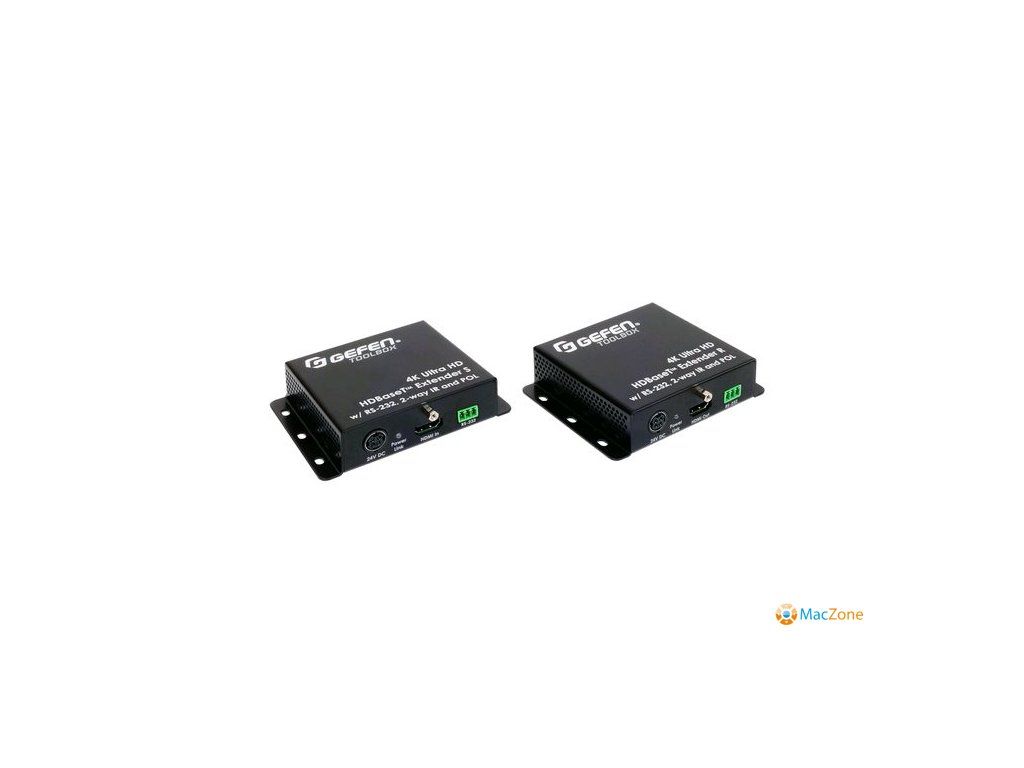

GefenToolBox 4K / 2K HDMI extender po CAT-6 až 100m GTB-UHD-HBT

Detailní popis produktu

GefenToolBox 4K / 2K HDMI extender po CAT-6 až 100m GTB-UHD-HBT .Černá varianta . Gefen GTB-UHD-HBT Features at a Glance Extends HDMI, RS-232, and 2-way IR over a single CAT-5e/CAT-6A 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters HDMI Features Supported: HDMI 2.0 HDCP 2.2 and 1.4 12-bit Deep Color LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through 3DTV pass-through CEC pass-through Lip Sync pass-through IR extension from Sender to Receiver and from Receiver to Sender Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable - only one side will need external power Uses Gefen’s implementation of HDBaseT™ technology with enhanced features Advanced EDID Management Firmware updatable via RS-232 Locking power connector Surface mountable 4K Ultra HD HDBaseT Extender GTB-UHD-HBT Description Features Specs(active tab) Resources Warranty Gefen GTB-UHD-HBT Specifications Shipping Info Length4.25 (Inches) Width12.1 (Inches) Height6 (Inches) Weight2.3 (Lbs) Unit of MeasureSet UPC888814999549 Other Specifications Maximum Pixel Clock 300 MHz Video Input connector (Sender) (1) HDMI Type A 19-pin, female, locking Video Output connector (Receiver) (1) HDMI Type A 19-pin, female, locking Link connector (Sender/Receiver) (1) RJ-45, shielded RS-232 port (Sender) (1) 3-pin Phoenix - DB-9 adaptor cable included RS-232 port (Receiver) (1) 3-pin Phoenix - DB-9 adaptor cable included IR Ext/In port (Sender/Receiver) (1) 3.5mm mini-stereo jack IR Extender type EXT-RMT-EXTIRN IR Out port (Sender/Receiver) (1) 3.5mm mini-mono jack Power/Link Indicator LED (Sender/Receiver) (1) Bi-color: Blue/Green Power Supply (1) 24V DC, locking Power Consumption (Sender and Receiver combined) 12W maximum
