Gefen převodník VGA na DVI a Scaler EXT-VGA-DVI-SC

Detailní popis produktu

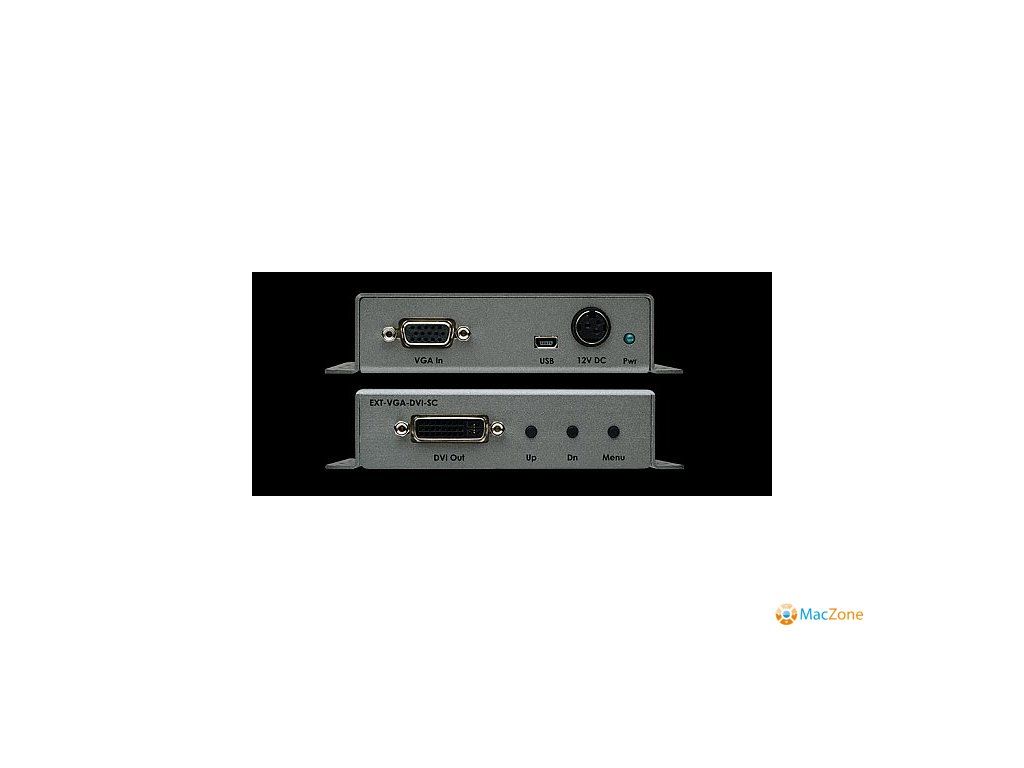

Gefen převodník VGA na DVI a Scaler EXT-VGA-DVI-SC - Scale and convert video from a VGA source for use with a DVI Display Features: Converts and scales VGA to DVI Input resolutions up to 1920 x 1200 (WUXGA) Output resolutions up to 1080p60 and 1920 x 1200 (WUXGA) On-screen display (OSD) menu allows easy set-up and control Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop Test Pattern Generator for quick system configuration Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management including custom input timings USB port for use with Gefen Syner-G™ Wide power supply operating range (6V to 24V DC) Locking power supply connector Surface mountab Tec. Spec.: Maximum Pixel Clock: 165 MHz Maximum TMDS Clock: 165 MHz Video Input Connector: (1) VGA HD-15, female Video Output Connectors: (1) DVI-I, 29-pin, female (digital only) USB Connector: (1) Mini-B Menu/Navigation Switches: (3) tact-type Power Indicator: (1) LED, blue Power Supply Connector: (1) 3-pin, locking Power Supply: 12V DC nominal (6V to 24V DC operating range) Dimensions (excluding connectors, W x H x D): 4.9" x 1" x 3.2" (123mm x 26mm x 82mm) Unit Weight: 0.4 lbs. (0.2kg) Package includes: (1) VGA to DVI Scaler / Converter (EXT-VGA-DVI-SC) (1) 6 ft. VGA Cable (CAB-VGA-6MM-O) (1) 12V DC Power Supply (EXT-PS121.5AIP-3P) (1) Quick-Start Guide (QSG-EXT-VGA-DVI-SC)
