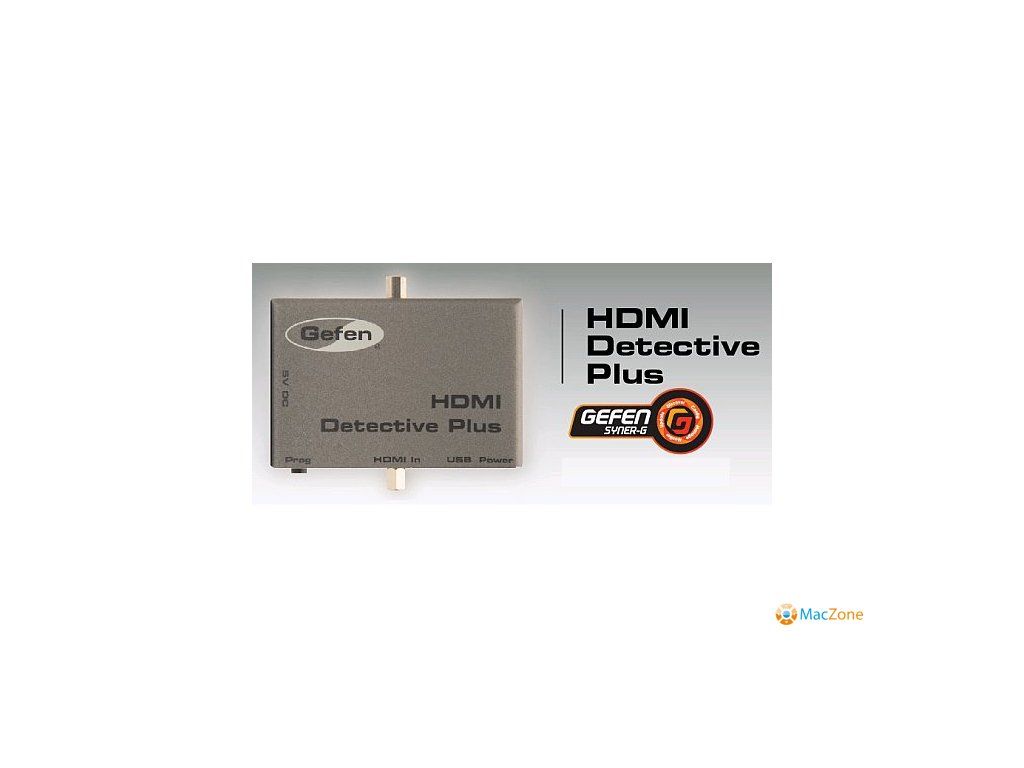

Gefen HDMI Detective Plus SynerG supported - ukládá HDMI EDID informace EXT-HD-EDIDPN

Detailní popis produktu

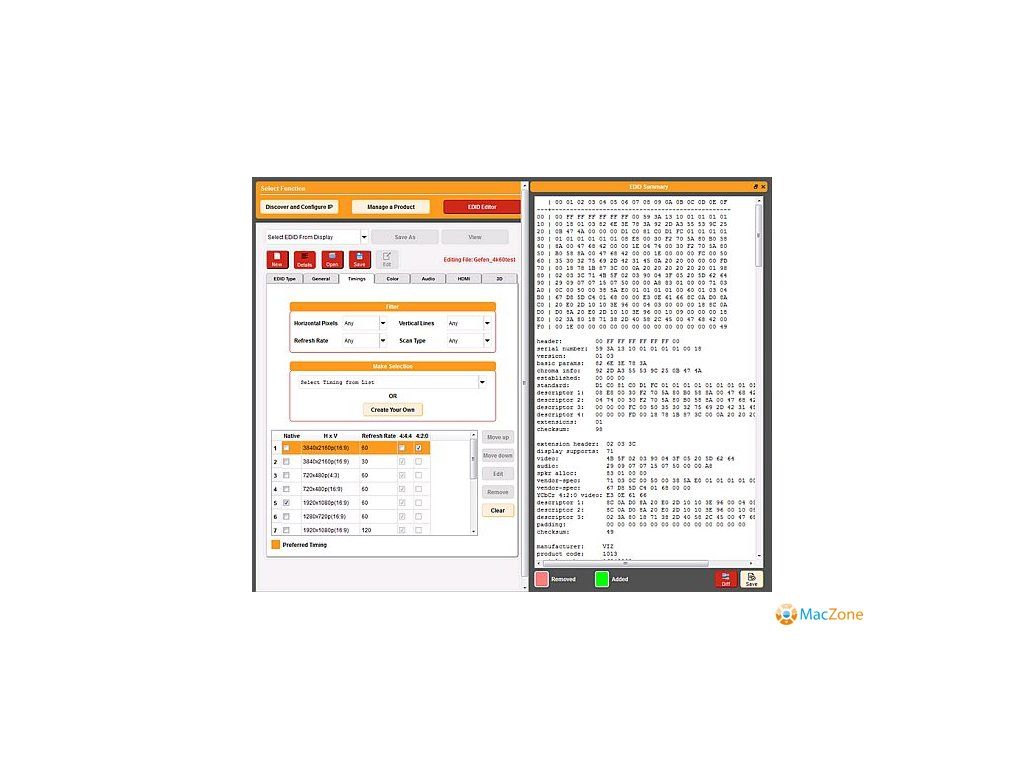

Gefen HDMI Detective Plus SynerG supported - ukládá HDMI EDID informace EXT-HD-EDIDPN Features Supports resolutions up to 1080p Full HD, and 1920 x 1200 (WUXGA) HDMI Features Supported: HDCP 12-bit Deep Color LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus,and DTS-HD® Master Audio™ 3DTV pass-through Lip-Sync pass-through CEC pass-through USB port for advanced programming of features such as EDID management Configurable EDID using Gefen Syner-G™ software suite, downloadable from Gefen website. DDC Re-clocking Records the EDID from a display 6 pre-programmed EDID profiles 6 user-programmable EDID banks for copying/uploading EDIDs Selectable HDCP pass-through Field updatable firmware via USB port Compact and portable Specifications Maximum Pixel Clock: 225 MHz** Maximum TMDS Clock: Up to 225 MHz** Video Input Connector: (1) HDMI Type A 19-pin, female, locking Video Output Connector: (1) HDMI Type A 19-pin, female, locking USB port: (1) Mini-B EDID Memory Size: 256 Bytes EDID Write Protect Switch: (1) slide-type EDID Program Button: (1) tact-type EDID programming switches: (3) DIP-type HDCP pass-thru/block switch: (1) DIP-type Power Supply : 5V DC Power Consumption: 5W (max.) Dimensions (W x H x D): 2.7" x 1.3" x 1.8" (68mm x 33mm x 46mm) Shipping Weight: 2 lbs (0.9kg)
