Gefen DVI Dual Link extender přes 2x CAT-6 kabely EXT-DVI-2CAT6DL

Detailní popis produktu

Gefen DVI Dual Link ( až do rozlišení 2560x1600) prodlužovací sada pro DVI Dual Link signály ( typicky počítač na DVI monitor s velkým rozlišením  ) po dvou CAT-6 kabelech až na vzdálenost 60metrů. Podpora přenosu EDID , prodloužení RS-232  ( Rx, Tx) ovládání . Součástí dodávky jsou vysílač, příjmač, dva zdroje , 1x kabel DVI DL a 1 x kabel RS 232 2m a uživatelská příručka.

Features:

The DVI Dual Link over 2CAT6 extends any DVI dual link source, to a display up to 60 meters away at resolutions to 2560x1600 using two CAT-6 cables. Extending dual link resolutions over standard DVI cables have a limitation of 5 meters. Exceeding this distance requires additional repeaters and/or boosters. The DVI Dual Link over 2CAT6 Extender provides an easy to install solution, using CAT-6 cables.

Note:
This product supports HDCP pass-through only when using single link resolutions.

- Supports DVI resolutions to 2560x1600 up to 60 meters over two CAT-6a cables
- EDID Management for Local and Pass-through modes
- Extends RS-232 Control (Rx and Tx only)
- Locking Power Supplies for secure connections
- Energy Star compliant
- Wall-mountable


Tech. Spec.:

Maximum Pixel Clock: 2 x 165 MHz
Input Video Signal: 1,2 Volts p-p
Input DDC Signal: 5 Volts p-p (TTL)

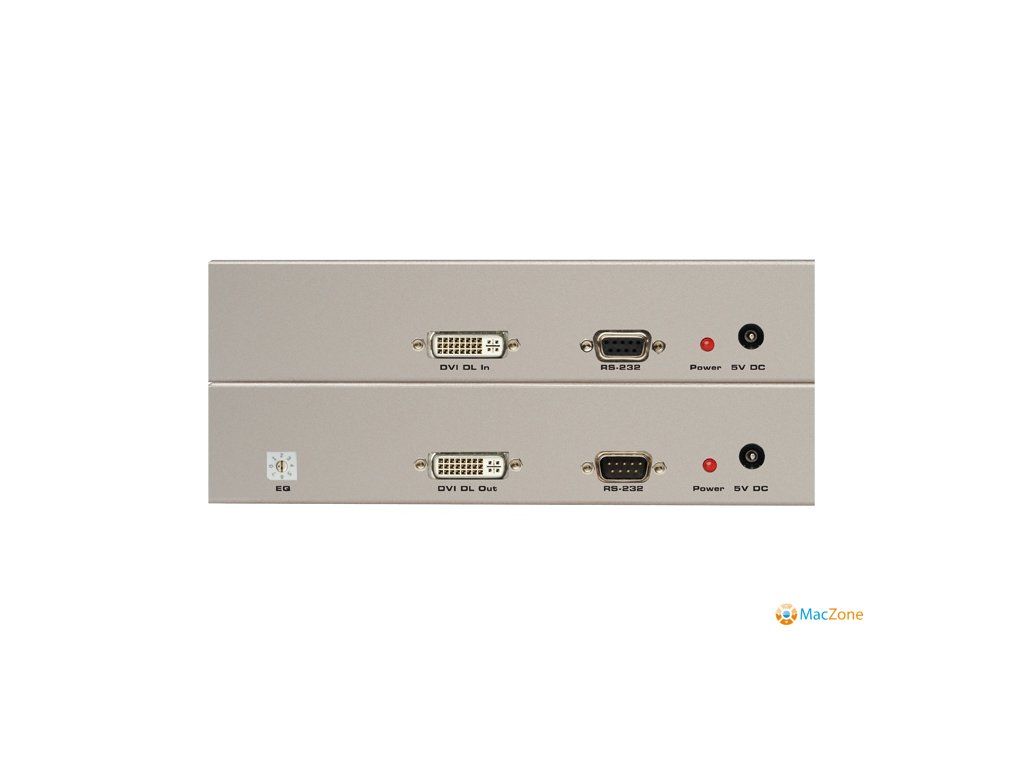

DVI Connector (Sender / Receiver): DVI-I, 29-pin, female (digital only)

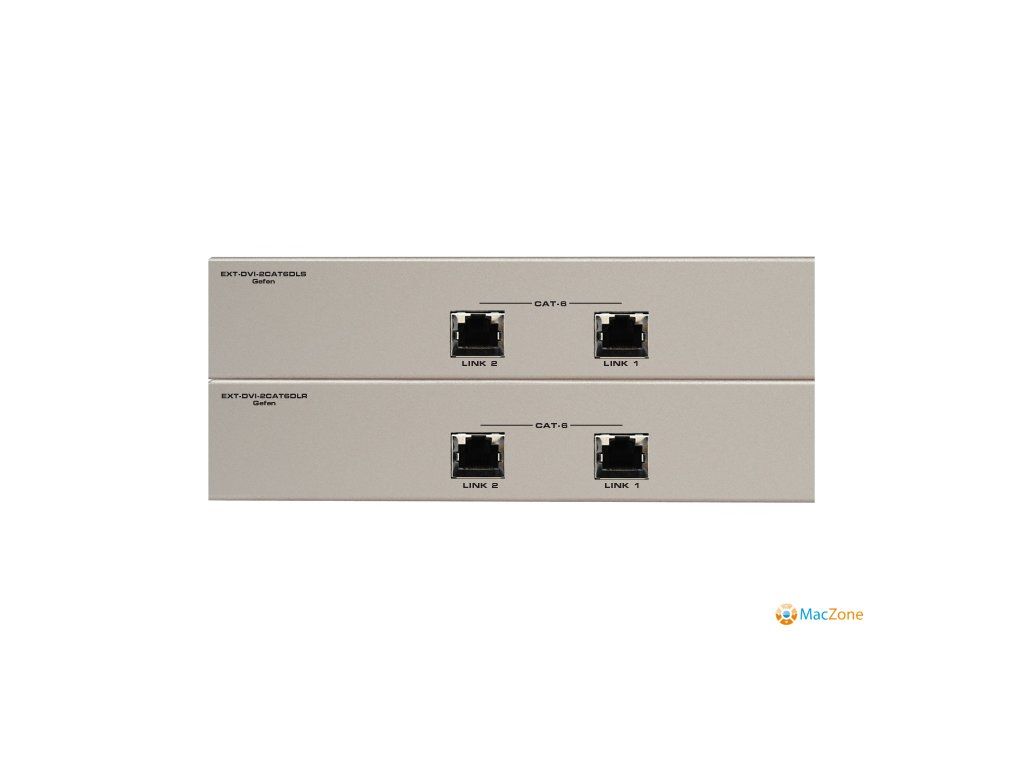

Link Connectors (Sender / Receiver): 2x RJ-45 per unit
Audio Connector (Sender / Receiver): 3,5mm mini-stereo jack
RS-232 Control (Sender / Receiver): DB-9 (Sender: female, Receiver: male)
Power Supply (Sender / Receiver): 5 V DC
Power Consumption: 10 W per unit (max.)
Operating Temperature: 0 - 40 ?C
Dimensions: 12,7 cm W x 3,175 cm H x 8,636 cm D
Shipping Weight: 1,9 kg
Certifications: UL (power supply), RoHS, CE


Package includes:

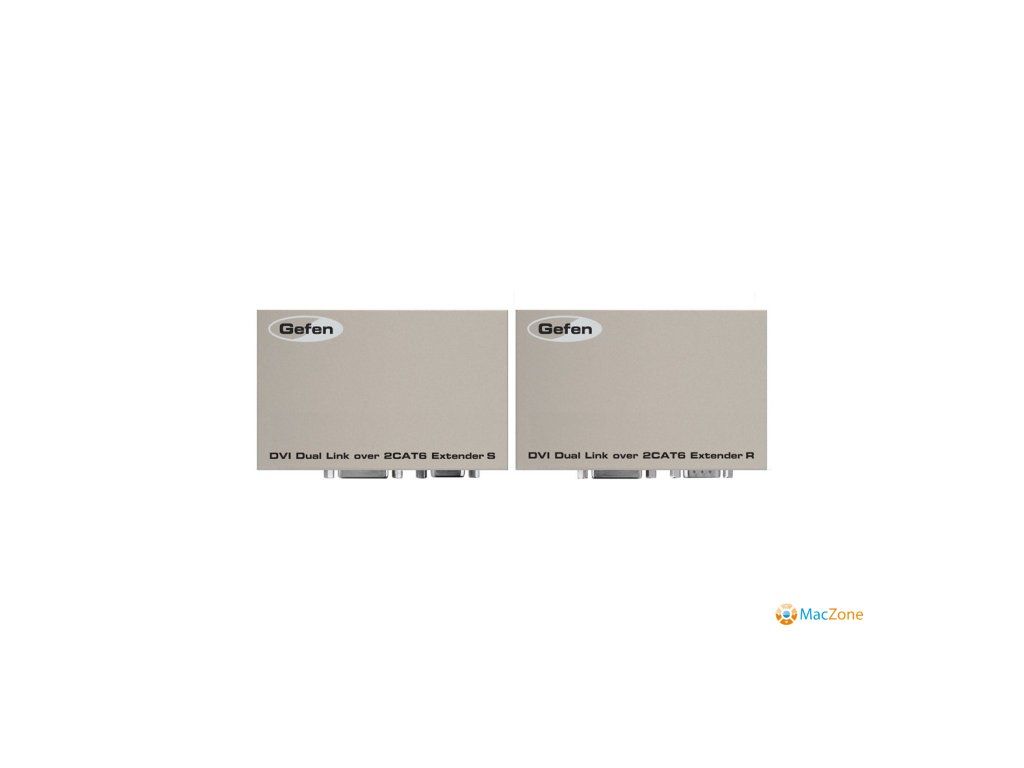

1x Gefen DVI Dual Link over 2CAT6 Extender - Sender Unit
1x Gefen DVI Dual Link over 2CAT6 Extender - Receiver Unit
1x 2 meter Dual Link DVI cable (M-M)
1x 2 meter DB-9 RS-232 cable (M-F)
2x 5V DC Locking Power Supplies
1x User Manual
