Gefen DVI CAT-5 Extender prodloužení DVI po 1 CAT5e kabelu EXT-DVI-1CAT5-SR

Detailní popis produktu

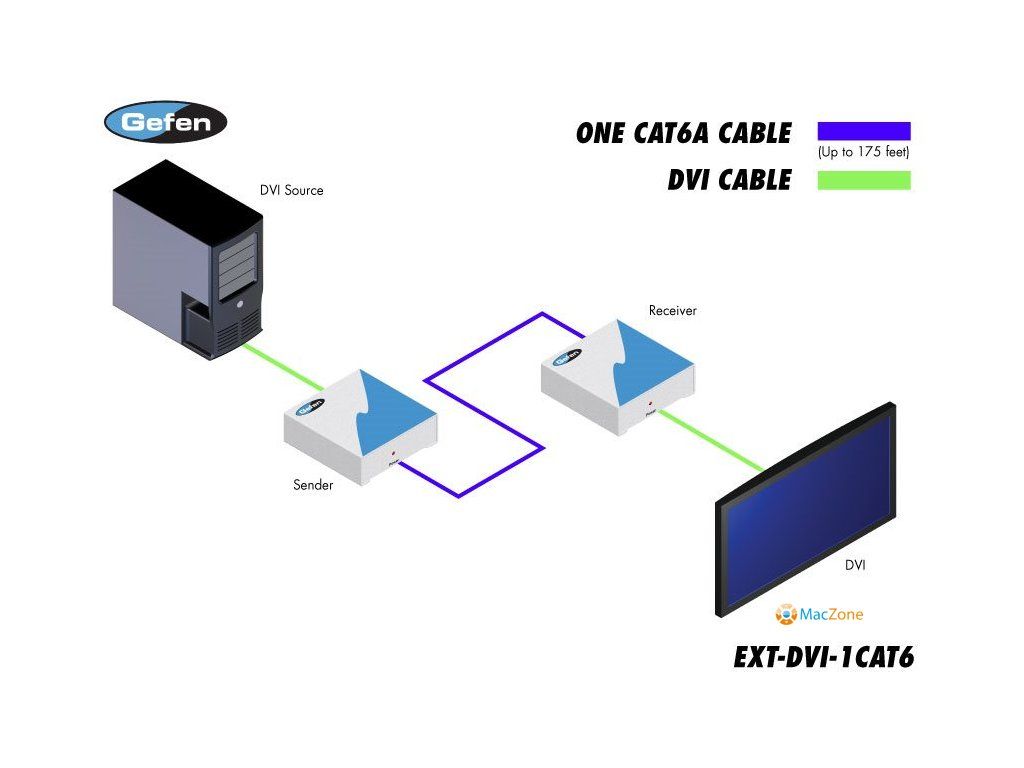

Prodloužení DVI signálu po CAT-5e ( 60m) nebo CAT-6 kabelu (70m) od zdroje sigálu do monitoru . Zařízení má příjmač a vysílač, dva napájecí zdroje . Vysílač a příjmač se propojují jedním CAT 5e/ CAT6 kabelem. Macimální rozlišení 1920x1200 ( nebo 1080p) , HCDP / HPD Pass Thru . Podpora EDID informací o typu monitoru je transferována grafické kartě. The DVI ELR-Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is capable of HDCP and HPD pass-through. It uses Gefen?s ELR Lite implementation of HDBaseT® Lite? technology, allowing the DVI signal to travel along a single CAT- 5e or better cable, reducing cable costs and facilitating installation. Features:* - Extends DVI up to 230 feet (70 meters) over one CAT-6A cable - Extends DVI up to 200 feet (60 meters) over one CAT-5e cable - Supports resolutions up to 1920 x 1200 (WUXGA) - EDID management for rapid integration of source and display - HDCP compliant - Locking power supplies - Surface-mountable Technical Specifications:* - Maximum Pixel Clock: 165 MHz - Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only) - Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only) - Link Connector (Sender / Receiver): (1) RJ-45 - Internal/External EDID Selector (Sender): (1) DIP switch - HPD Pass-Through Selector (Sender): (1) DIP switch - HDCP Pass-Through Selector (Sender): (1) DIP switch - Power Indicator (Sender/Receiver): (1) LED, blue - Link Indicator (Sender/Receiver): (1) LED, green - Power Supply (Sender / Receiver): 5V DC, Locking - Power Consumption (Sender/Receiver): 10 W per unit (max.) - Operating Temperature: 0 to +45°C - Operating Humidity: 0 to 90% RH, non-condensing - Dimensions (W x H x D): 110mm x 26mm x 86mm - Shipping Weight: 1.4 kg Package includes: (1) DVI ELR Lite Extender over one CAT5 - Sender Unit (EXT-DVI-1CAT5-SRS) (1) DVI ELR Lite Extender over one CAT5 - Receiver Unit (EXT-DVI-1CAT5-SRR) (1) 6 ft. (2 m) Dual Link DVI Copper Cable (CAB-DVIC-DLN-06MM) (2) 5V DC Locking Power Supplies (EXT-PS526AIP-LP) (1) Quick-Start Guide (QSG-DVI-1CAT5-SR)
