Gefen Dual Link DVI FM 2500 Extender - prodloužení Dual link DVI po optice EXT-DVI-FM2500

Detailní popis produktu

Gefen EXT-DVI-FM2500 s podporou viruálního EDID prodlužuje Dual-Link DVI až na vzdálenost 1000 metrů do DVI displeje s rozlišením až 3840x2400 (WQXGA) . Extender používá dvouvláknový 50/125µm multimode (OM3) optický kabel s SC konektory.
Optický signál mezi příjmačem a vysílačem je ZCELA galvanicky oddělený a zcela imuní vůči elektormagnetickým interferencím  v porovnání s podobným řešení na metalické bázi. Kromě běžných instalací lze použít i v náročných provozech , dohledových center v elektrárnách , pro lékařské a laboratorní přístroje apod a také tam, kde je vzdálenost mezi zobrazovací jednotkou vyšší, než metalické extendery zvládnou ( obvykle do 50m ) , tento převodník umožňuje vzdálenost až 1 kilometr.

The Virtual EDID feature programs the display EDID into the Sender module to ensure fast integration and compatibility between the source and the display.

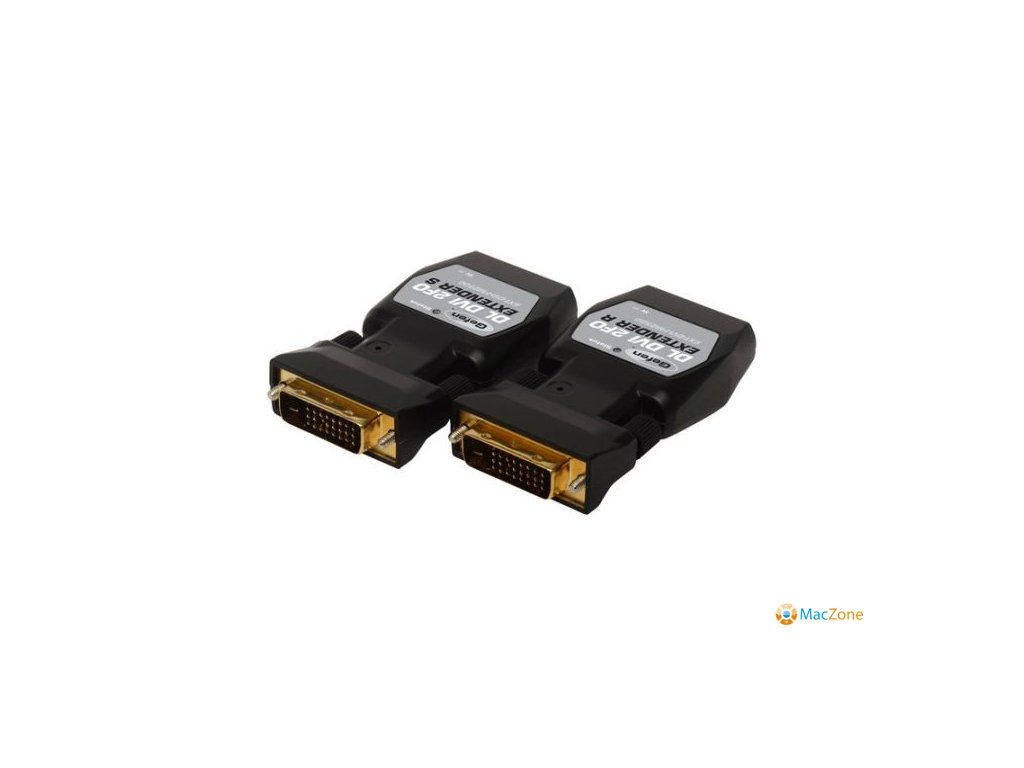

The attractive and compact Sender and Receiver modules fit neatly behind the equipment for a clean installation, making it a great way to extend dual-link DVI.

Note: The Sender module does not need to be powered externally unless the source does not supply enough power through the DVI connector.

Features

- Extends dual-link DVI up to 3300 feet (1 kilometer) over two strands of OM3 (laser-optimized 50/125µm) multimode fiber optic cable
- Extends dual-link DVI up to 1650 feet (500 meters) over two strands of OM2 (conventional 50/125µm) multimode fiber optic cable
- Extends dual-link DVI up to 1000 feet (300 meters) over two strands of OM1 (62.5/125µm) multimode fiber optic cable
- Supports resolutions up to 3840 x 2400 (dual-link DVI)
- Virtual EDID allows EDID copying from the display to the source
- Fiber optic transmission eliminates effects of electromagnetic interference (EMI)
- Sturdy metal die-cast enclosures are perfect for professional and industrial applications
- Compact Sender and Receiver modules provide a clean, easy installation
- Use Gefen CAB-2SC-xxx OM1 Fiber Optic Link Cables for distances from 30 - 330 feet (9 - 100 meters)
- FCC and CE compliant for EMI/RFI emission

Technical Specifications:

- Maximum Pixel Clock: 2 x 165 MHz
- Video Input Connector (Sender): (1) DVI-D 24-pin, male
- Video Output Connector (Receiver): (1) DVI-D 24-pin, male
- Link Connector (Sender / Receiver): (1) Type SC fiber (50/125µm)
- Power Supply (Sender): 5V DC (not needed for most applications)
- Power Supply: (Receiver): 5V DC
- Power Consumption (Receiver): 1.5W (max.)
- Operating Temperature: 0° to +50° C
- Storage Temperature: -30° to +70° C
- Relative Humidity: 5% to 85% (non-condensing)
- Dimensions (W x H x D): 1.54" x 0.59" x 2.83" (39.11mm x 14.98mm x 71.88mm)
- Shipping Weight: 2 lbs (0.91 kg)

Package includes:

1x Dual Link DVI (Dongle Modules) (Sender Module) (EXT-DVI-FM2500S)
1x Dual Link DVI (Dongle Modules) (Receiver Module) (EXT-DVI-FM2500R)
2x 5V DC Power Supply (EXT-PS51AIP-1.3)
1x Quick-Start Guide (QSG-DVI-FM2500)


*Features and specifications are subject to change without notice.
