Gefen Display port splitter 1:4 Splitter for DisplayPort EXT-DP-144

Detailní popis produktu

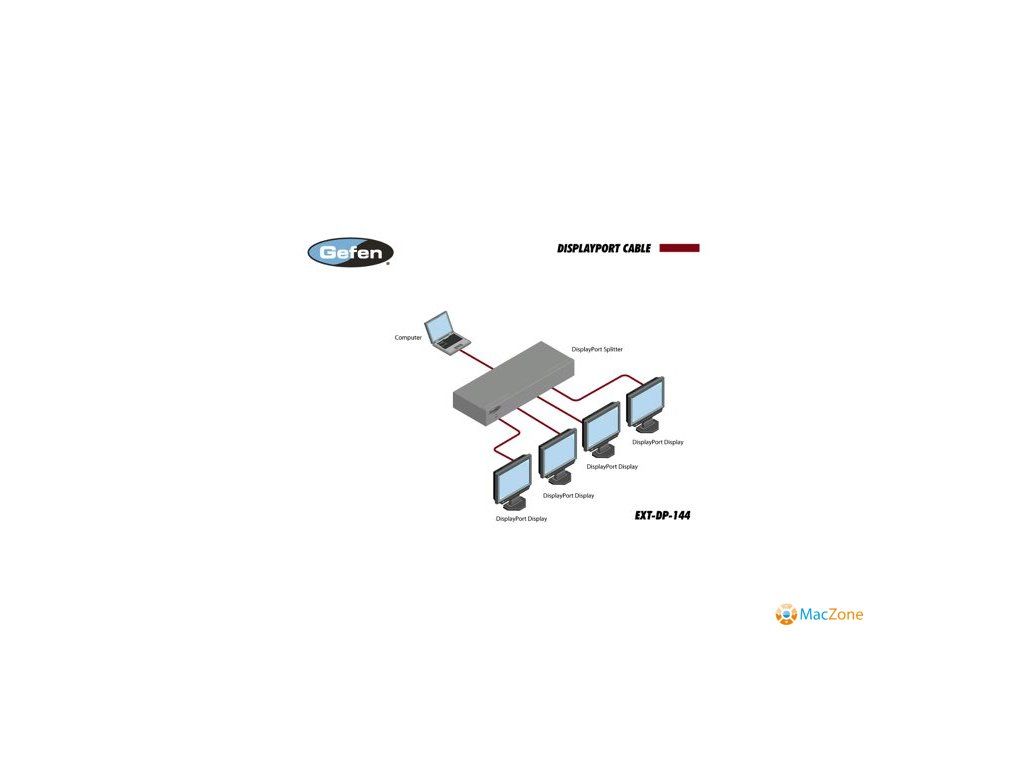

Gefen Display port splitter 1:4 Splitter for DisplayPort EXT-DP-144 . Features* The Gefen 1:4 Splitter for DisplayPort allows a DisplayPort-equipped source to be connected to four DisplayPort displays. EDID management provides rapid integration of source and displays. Two or more of these splitters can be connected together to create larger video distribution networks. Simultaneously displays one DisplayPort source on up to four displays Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA) EDID Management for rapid integration of source and displays EDID Reset button Supports up to 7.1 channels of linear PCM audio (32 kHz - 192 kHz sampling rate) Supports DisplayPort 1.1a Maximum Pixel Clock: 300 MHz Maximum Data Rate: 10.8 Gbps Maximum Resolution: 2560 x 1600 Video Input Connector: (1) DisplayPort, female Video Output Connectors: (4) DisplayPort, female Power Supply: 5V / 3A DC Power Consumption: 15W (max.) Operating Temperature: 0 - 40° C Dimensions (W x H x D): 10.75” x 1.25” x 5.2
