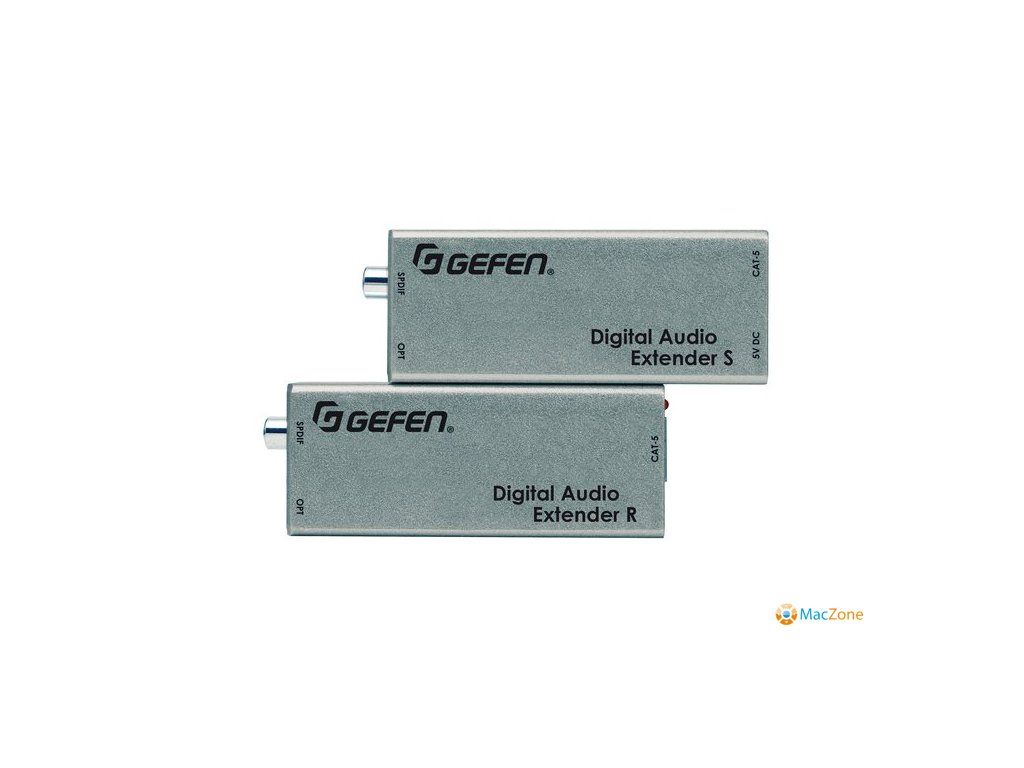

Gefen Digital Audio Extender - GFN-EXT-DIGAUD-141

Detailní popis produktu

Gefen Digital Audio Extender - prodloužení digitálního audio signálu po jednom CAT-5 kabelu na vzdálenost až 100m. Vstup výstup Toslink nebo S/PDIF Extends Coaxial S/PDIF and TOSLINK® Optical Digital audio up The Gefen EXT-DIGAUD-141 Digital Audio Extender over CAT-5 Extender allows you to place your digital audio components anywhere you want. It supports either S/PDIF or TOSLINK® digital audio signals, which are commonly used to transmit stereo and multichannel digital audio like Dolby Digital® 5.1, DTS, and Dolby® True HD. The Digital Audio Extender uses a Sender and Receiver system connected by a CAT-5e cable to extend the digital audio. Audio Support Supports multichannel digital audio like Dolby® Digital 5.1, DTS, and Dolby® TrueHD Shipping Info Length9.4 (Inches) Width6.3 (Inches) Height3 (Inches) Weight1.15 (Lbs) UPC845344001210 Other Specifications Data Transmission Rate: 12.8 Mb/s S/PDIF: 96 kHz performance TOSLINK: 192 kHz performance Input/Output: S/PDIF, optical TOSLINK Link Connector: RJ-45 Shielded Power Supply: 5V DC Power Consumption: 5W (max) per power supply Dimensions (W x H x D): 3.8" x 1.2" x 1.4" (96mm x 30mm x 35mm) Shipping Weight: 5 lbs. (2.3 kg) In The Box EXT-DIGAUD-141 Sender unit (1) EXT-DIGAUD-141 Receiver unit (1) CAB-TLINK-3MM-5ft TOSLINK® cable(1) EXT-PS526AIPN or EXT-PS526AIPN-6 5V Power Supply(1) QSG-DIGAUD-141 Quick Start Guide(1)
