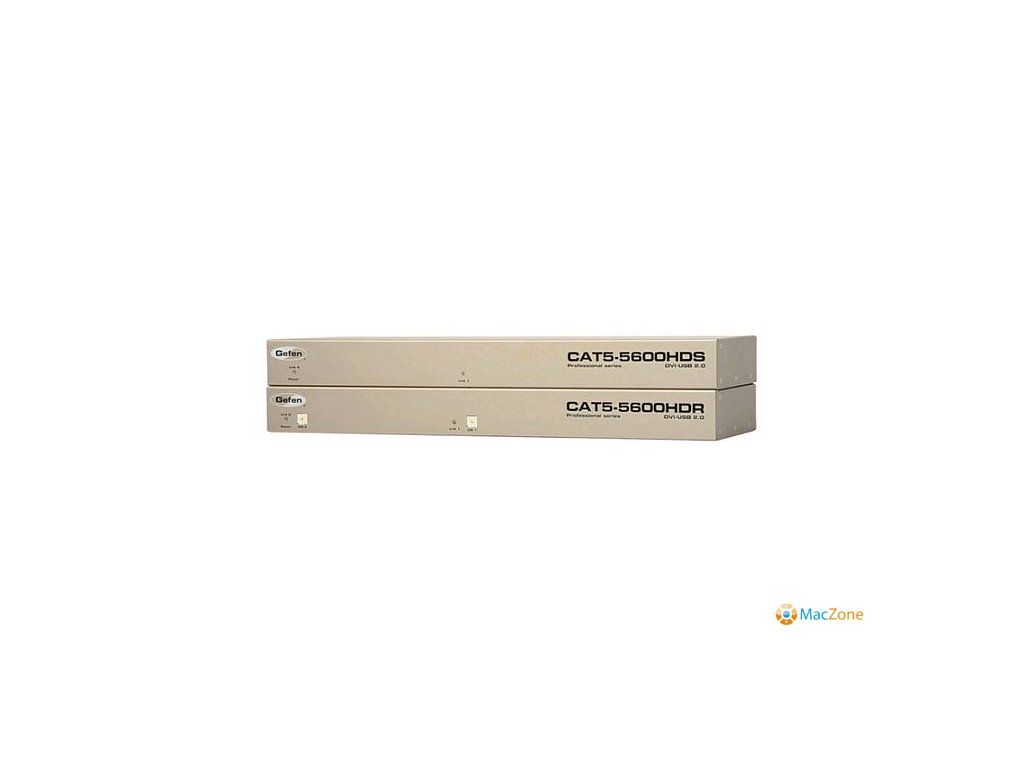

Gefen CAT5 5600HD Dual Display DVI KVM Extender

Detailní popis produktu

EXT-CAT5-5600HD Features: Extend two DVI sources and USB 2.0 peripherals from any computer or KVM device with the Gefen CAT5-5600HD Professional Series KVM extender. Extension is up to 60 meters using three (3) CAT-6A cables. The Receiver Unit allows the connection of up to two DVI monitors and up to four USB devices, expanding your workspace and increasing productivity in a post-production and editing environment. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. CAT-5 or 5e cables can be used to extend 1080i up to 45 meters and 1080p up to 30 meters. CAT-5 cable is sufficient for USB link. Shielded cables are optional. Note: The CAT5-5600HD is an HDCP pass-through device. - Extends USB 2.0 60 meters or more - Backward-compatible with USB 1.1 devices - Works with any computer using DVI and USB - Supports DDWG standard for DVI monitors - Energy Star compliant - Rack-mountable (Rack Ears Included) Tech. Spec.: Maximum Pixel Clock: 165 MHz Input Video Signal: 1,2 volts p-p Input DDC Signal: 5 Volts p-p (TTL) Digital Video Inputs (Sender): 2x DVI-I, 29-pin, female Digital Video Outputs (Receiver): 2x DVI-I, 29-pin, female USB Input (Sender): 1x Type B USB Outputs (Receiver): 4x Type A Link Connectors: 3x RJ-45, shielded (shielded cabling optional) Indicator Lights (Sender/Receiver): 2x LINK 1 / LINK 2 (flash red for power, green when linked) EQ Rotary Switches (Receiver): 2x EQ 1 / EQ 2 (adjusts for cable type and length) Power Supply (Sender / Receiver): 5 V DC Power Consumption: 20 W per unit (max.) Operating Temperature: 0 - 40 ?C Dimensions (Sender / Receiver): 43,18 cm W x 4,445 cm H x 11,113 cm D Shipping Weight: 3,5 kg Certifications: UL (power supply), RoHS, CE Package includes: 1x CAT5-5600HD - Sender Unit 1x CAT5-5600HD - Receiver Unit 2x 2 meter DVI cables (M-M) 1x 2 meter USB cable (A-B) 2x 5V DC Power Supplies 1x User Manual 1x Pair Rack Ears
