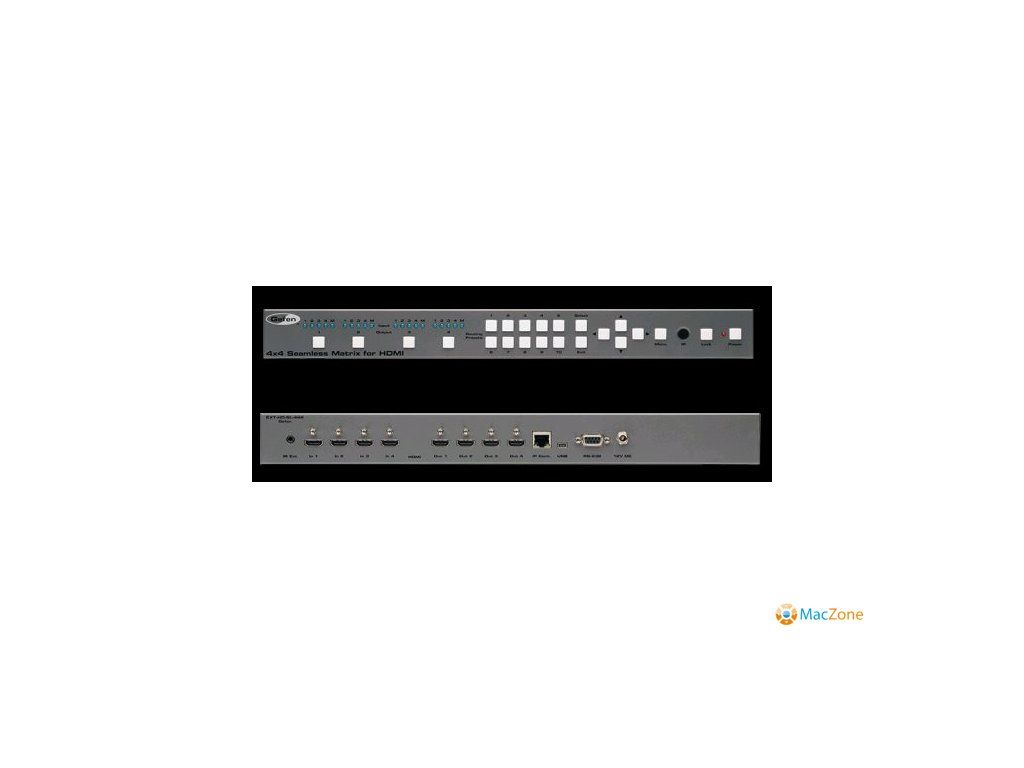

Gefen 4x4 Seamless HDMI Matrix - HDMI matice 4x4 s podporou SynerG EXT-HD-SL-444

Detailní popis produktu

Gefen 4x4 Seamless HDMI Matrix - HDMI matice 4x4 s podporou SynerG EXT-HD-SL-444 Gefen ultrarychlá HDMI matice s přepínáním HDMI ( 4x4 ), jakýkoliv vstup signálu do jakéhokoliv výstupu Using the included HDMI cables, connect up to four Hi-Def sources to the HDMI inputs on the matrix. Using HDMI cables, connect up to four HDTV displays to the outputs of the unit. To use the built-in web server, Telnet, or UDP capability to switch inputs, select presets, and control other features of the matrix, connect an Ethernet cable from your Local Area Network to the IP Control port. To control the unit via RS-232, connect the included DB-9 cable from a Control Automation device to the unit. If IR control is required and the unit is not installed in line of sight, connect the included EXT-RMT-EXTIRN IR Extender to the IR Ext port on the back of the unit. Connect the included locking power supply to the unit and to an available electrical outlet. Power up the matrix, the sources, and the displays. Features * Seamless matrix scales each of its four inputs, and routes them to any or all of the four outputs without frame loss * Input and Output resolutions up to 1080p Full HD and 1920x1200 (WUXGA) * HDCP compliant * Seamless switching ensures no switching delay and no picture loss during transitions * Ten user-configurable routing presets can be accessed via front panel push-buttons * Controllable via front panel controls, IR, IP (web server interface, Telnet, and UDP), and RS-232 * Easy to use on-screen Graphical User Interface (GUI) * Handheld IR remote control and IR Extender input on back panel * Field-upgradable firmware via web server interface * USB port (reserved for future product enhancements) * Locking power supply connector * 1U tall rack-mountable enclosure, rack ears included Specifications * Video Input connectors: (4) HDMI Type A, 19-pin, female, locking * Video Output connectors: (4) HDMI Type A, 19-pin, female, locking * RS-232 connector: (1) DB-9, female * IP Control connector: (1) DB-9, female * USB Connector: (1) Mini-B * IR Ext Connector: (1) 3.5mm stereo mini-phone jack * IR Extender type: (1) EXT-RMT-EXTIRN * User-configurable routing presets selector buttons: (10) tact-type, blue backlight * Input/Window selector buttons: (4) tact-type, blue backlight * Input Indicators: (20) LEDs, 5 per window, blue * Menu button: (1) tact-type, blue backlight * Menu Navigation buttons: (6) tact-type * On/Standby button: (1) tact-type, blue backlight * Standby Indicator: (1) LED, red * Power Supply: 12V DC, locking * Power Consumption: 24W (max.) * Dimensions (W x H x D): 16.9" x 1.7" x 7.9" (430mm x 42mm x 200mm) * Unit Weight: 7 lbs. (3.2 kg)
