Gefen 1:2 HDMI 1.3 Splitter with digital audio - GFN-EXT-HDMI1.3-142D

Detailní popis produktu

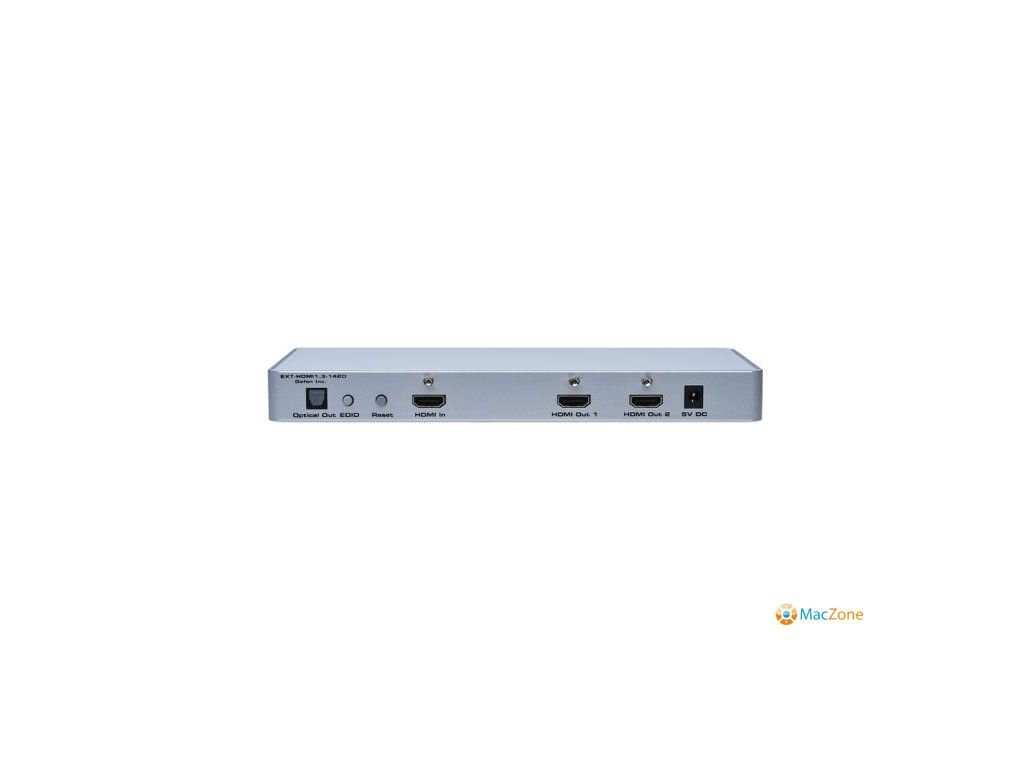

1:2 Splitter for HDMI 1.3 with Digital Audio EXT-HDMI1.3-142D Features: The 1:2 Splitter for HDMI 1.3 with Digital Audio allows set-top boxes, DVD players, DVRs and even computers to be connected to two HDTV displays simultaneously. A TOSLINK output on the rear of the Splitter feeds digital audio to an external amplifier or receiver for additional installation flexibility. A greater number of HDTV displays can be daisy-chained together to create a larger distribution. Note: The 1:2 Splitter for HDMI 1.3 with Digital Audio has two HDMI outputs. The first HDMI output connects to the primary HD display, from which the video resolution and timing information (known as EDID) is obtained. The EDID information is used to create an identical picture on the secondary display. Both HD displays must be capable of the same video resolution(s) or the secondary display may not show the picture correctly. DVI may be used with the 1:2 Splitter for HDMI 1.3 with Digital Audio using an optional DVI-to-HDMI adapter cable. TOSLINK digital audio formats supported: Dolby AC3 2-channel and 5.1-ch digital audio LPCM 2-ch digital audio (32-192 KHz sampling rate) Dolby Digital Plus 5.1-ch digital audio DTS 2-ch and 5.1-ch digital audio HDMI 1.3 Features Supported: Lip-Sync Pass-Through 225 MHz (up to 12 bit YUV 444 @ 1080p) Deep Color (XV Color) Color Space Conversion Dolby TrueHD & DTS Master Audio CEC Pass-Through 3DTV Pass Through Tech. Spec.: Video Amplifier Bandwidth: 225 MHz Input Video Signal: 1.2 Volts p-p Input DDC Signal: 5 Volts p-p (TTL) Single Link Range: 1080p/1920 x 1200 HDMI Connector: Type A 19 Pin Female Power Supply: 5V DC Power Consumption: 10 Watts (max) Dimensions: 26,035 cm W x 2,54 cm H x 10,795 cm D Shipping Weight: 2,3 kg Package includes: 1x Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio 1x 5V DC / 2.5 A Power Supply 1x 2 m HDMI cable Male-Male 1x User's Manual
