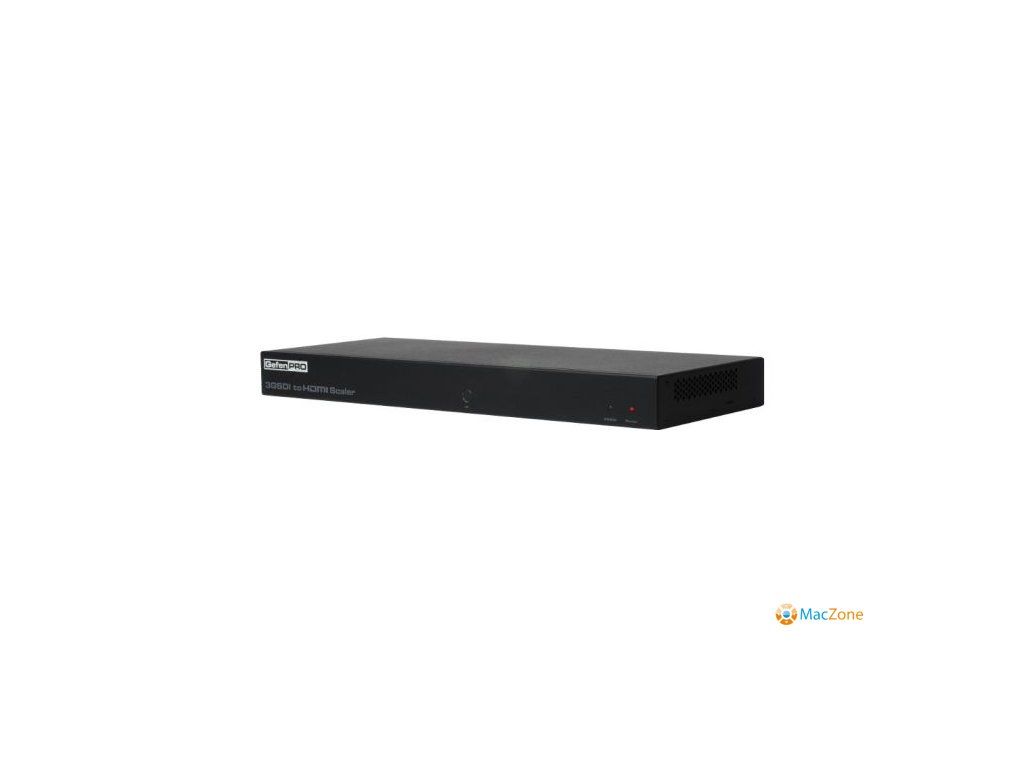

Gefen Pro 3G-SDI to HDMI Converter with Scaler -GEF-3GSDI-2-HDS

Detailní popis produktu

GefenPRO 3GSDI to HDMI Scaler GEF-3GSDI-2-HDS Features: The GefenPRO 3GSDI to HDMI Scaler converts a single link or dual link SDI source to HDMI and scales it on the output. Resolutions up to 1080p and 2K with up to 8 channels of audio is supported. The built-in S/PDIF audio output can be used to send multichannel digital audio to a separate A/V receiver. This product uses the VXP scaler which provides high-performance scaling plus additional features: Cadence detection, frame rate conversion, advanced noise reduction, detail enhancement, and a fully integrated menu system. This product supports SDI, HD-SDI, and 3G-SDI SMPTE 425-A and 425-B input formats. The GefenPRO 3GSDI to HDMI Scaler provides superior 3G-SDI to HDMI conversion and scaling packaged in a single rack mount unit with an internal power supply. - Supports resolutions of 1080p and 2K - 10-bit Deep Color support - Supports 8 channels of digital multichannel audio - 3G-SDI (SMPTE 424M/425M, up to 3.0 Gbps) - HD-SDI (SMPTE 292M, up to 1.485 Gbps) - SDI (SMPTE 259M, up to 360 Mb/s) - Supports 3G-SDI SMPTE 425-A and 425-B (4:2:2 only) - Adjustable cadence detection - Advanced noise reduction and detail enhancement - Frame rate conversion - Fully integrated sprite-based Menu System - Built-in pattern generator with Color Bars and Cross Hatch patterns - RS-232 Control - IR Remote Control - Internal Power Supply - Field-upgradeable firmware using USB - Rack-mountable (Rack ears included) Tech. Spec.: Input Video Bandwidth: 2x 165 MHz Output Video Bandwidth: 225 MHz 3G-SDI Input Connectors: 2x BNC male 3G-SDI Loop Connectors: 2x BNC male HDMI Output Connector: Type A 19-pin female External Audio Output: S/PDIF USB Connector: Type B RS-232 Interface: DB9 female Power Supply: 110/220V (internal) Power Connector: IEC Power Consumption: 20 Watts (max.) Operating Temperature: 0 - 40 °C Rack Size: 1U Dimensions: 43,815 cm W x 4,445 cm H x 17,018 cm D Shipping Weight: 1,6 kg Package includes: 1x GefenPRO 3GSDI to HDMI Scaler 1x IR Remote Control Unit 1x Set of Rack Ears 1x AC Power Cord 1x User Manual
