Gefen 3G-SDI na HDMI konvertor s podoprou Syner-G EXT-3G-HD-C

Detailní popis produktu

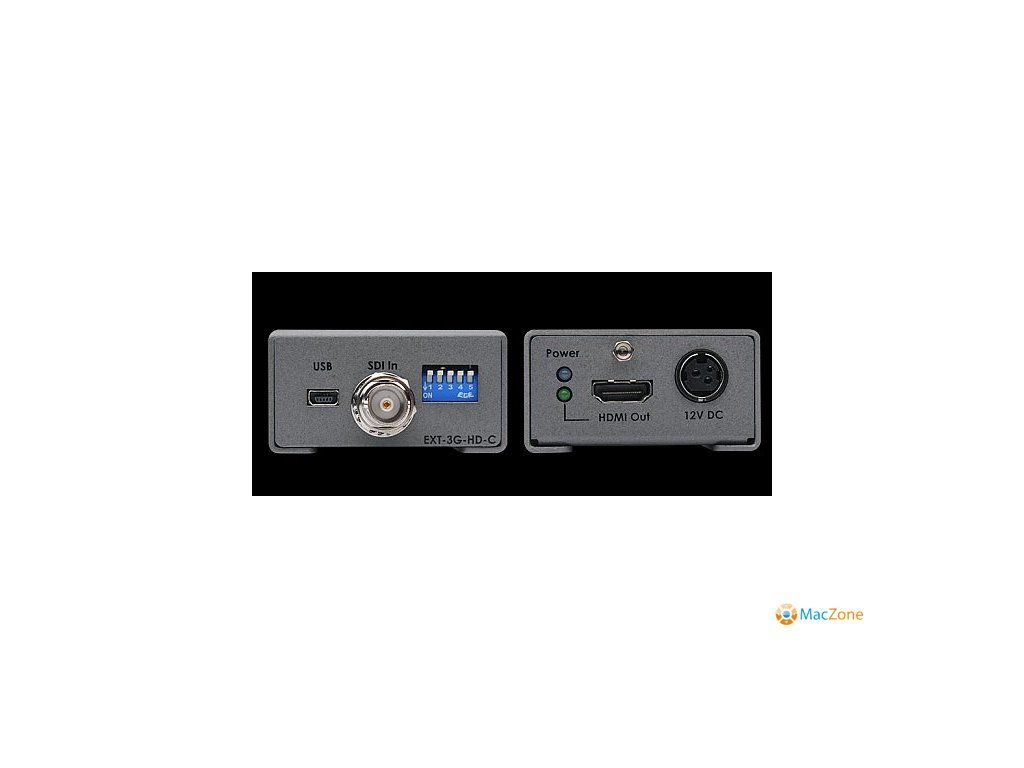

Převodník Gefen z 3G-SDI na HDMI The Gefen EXT-3G-HD-C converts audio and video from SDI to HDMI format, at resolutions up to 1080p Full HD, 3G-SDI, single link HD-SDI, and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G™ software suite. This product can be installed on camera gear via an industry-standard 1/4-20 attachment thread located on the bottom of the unit. It can also be surface-mounted using the included surface mounting bracket. The EXT-3G-HD-C is light and compact enough to be held in place using Velcro® if your particular installation does not allow for the two preferred methods of installation described above. Set the DIP switches as necessary. Connect an SDI cable between the input of the EXT-3G-HD-C and an SDI source. Connect the HDMI output of the Gefen converter to an HDMI display or other downstream equipment using a Gefen locking HDMI cable. Connect the included 12V DC power supply to the 3GSDI to HDMI Converter's power supply jack and to an available electrical outlet. To remove the power supply plug from the unit, disengage the lock by pulling back on its plastic sleeve. The power LED indicator will glow in blue to indicate that the unit is powered on. The HDMI Out LED indicator will glow in green to indicate that an active HDMI sink is present. Use the USB Mini-B port with Gefen Syner-G™ software suite for performing firmware updates. See the user manual for details. Features : Converts SDI to HDMI Input resolutions up to 1080p60 Output resolutions up to 1080p Full HD HDMI (YCbCr 4:4:4) or DVI (RGB 4:4:4) output modes Supports 3G-SDI Levels A and B, Single-Link HD-SDI, and SD-SDI Supports up to 10 bit color on input and output Up to LPCM 7.1 audio support Field configurable via DIP switch settings Mini USB port for use with Gefen Syner-G™ for in-field firmware updates Wide power supply operating range (6V to 24V DC) Locking power supply connector 1/4-20 industry-standard camera gear attachment thread on bottom Surface-mountable using the included detachable bracket Specifications Maximum Pixel Clock: 150 MHz Maximum TMDS Clock: 225 MHz Video Input Connector: (1) SDI BNC-type, female Video Output Connector: (1) HDMI Type A 19-pin, female, locking USB Connector: (1) Mini-B Configuration Switches: (5) DIP-type HDMI Indicator: (1) LED, green Power Indicator: (1) LED, blue Power Supply Connector: (1) 3-pin, locking Power Supply: 12V DC nominal (6V to 24V DC operating range) 95% RH, non-condensing MTBF: 50000 hours Dimensions (excluding connectors, W x H x D): 2.9" x 1.2" x 2.3" (74mm x 30mm x 59mm) Net Unit Weight: 0.3 lbs. (0.15kg)
