Gefen 3G-SDI Fibre optic extender - optický extender 3GSDI -EXT-3GSDI-FO-141

Detailní popis produktu

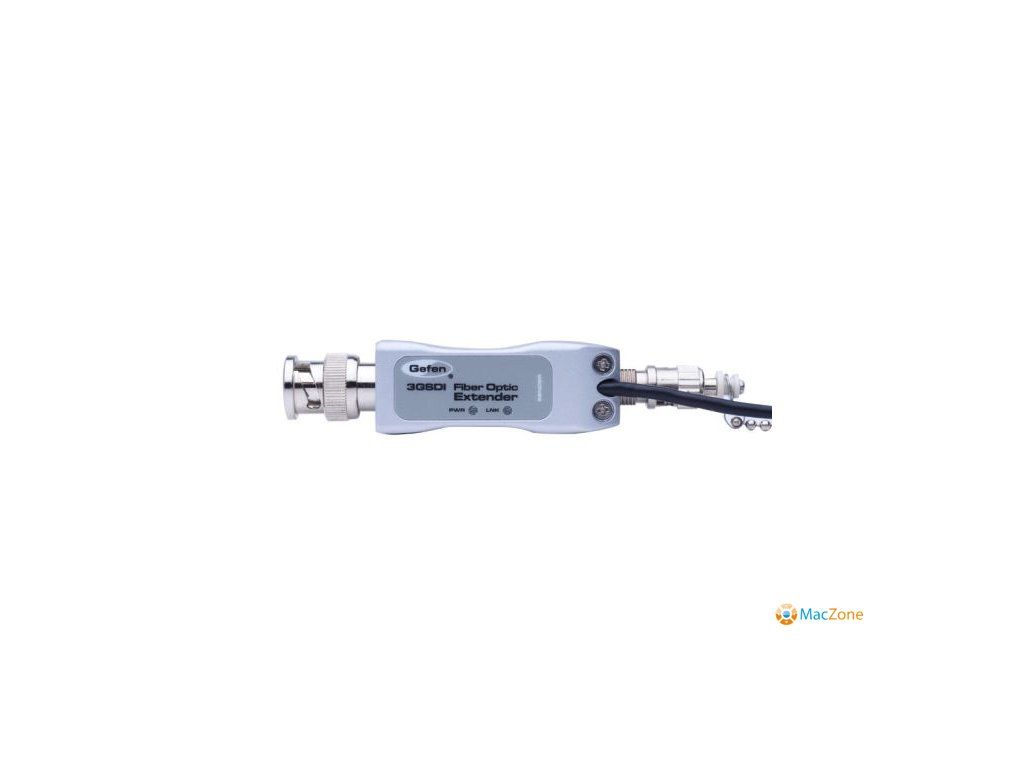

Gefen 3G-SDI Fibre optic extender - optický extender 3GSDI -EXT-3GSDI-FO-141 3GSDI Fiber Optic Extender EXT-3GSDI-FO-141 Features: 3G HD-SDI Digital Video Transport System over Fiber The Gefen 3G-SDI Fiber Optic Extender is a miniature digital video transport system over fiber for 3G-SDI. It transports a one-channel SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, or SMPTE-259M SDI video signal over extended distances by using either single-mode or multi-mode fiber. - Supports SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI - Extends up to 20Km over (Single Mode) and up to 1km (Multi Mode) - Transports Multi-rate HD-SDI Digital Video over 1 Fiber - HD-SDI BNC input connector and ST terminated fiber optical connector - Robust metal die-casting enclosure for harsh environment - Automatic Input Equalization Tech. Spec.: Signal Format: SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI Input Impedance: 75 Ohm Data Rate: up to 3 Gbps Signal Level: 800mVp-p +/- 50mV Optical Fiber Types: ST (Multi mode and Single mode) Number of Fibers: 1 Output Connector: BNC Female Distance: Up to 20km Dimension: 1,9558 cm W x 1,9558 cm H x 5,0038 cm D Power Supply: 5V DC @ 0.5 A Power Budget: 16dB Operating Temperature: -20° to +80° C Package includes: 1x EXT-3GSDI-FO-141S 1x EXT-3GSDI-FO-141R 1x Users manual 2x 5V Power Supplies
