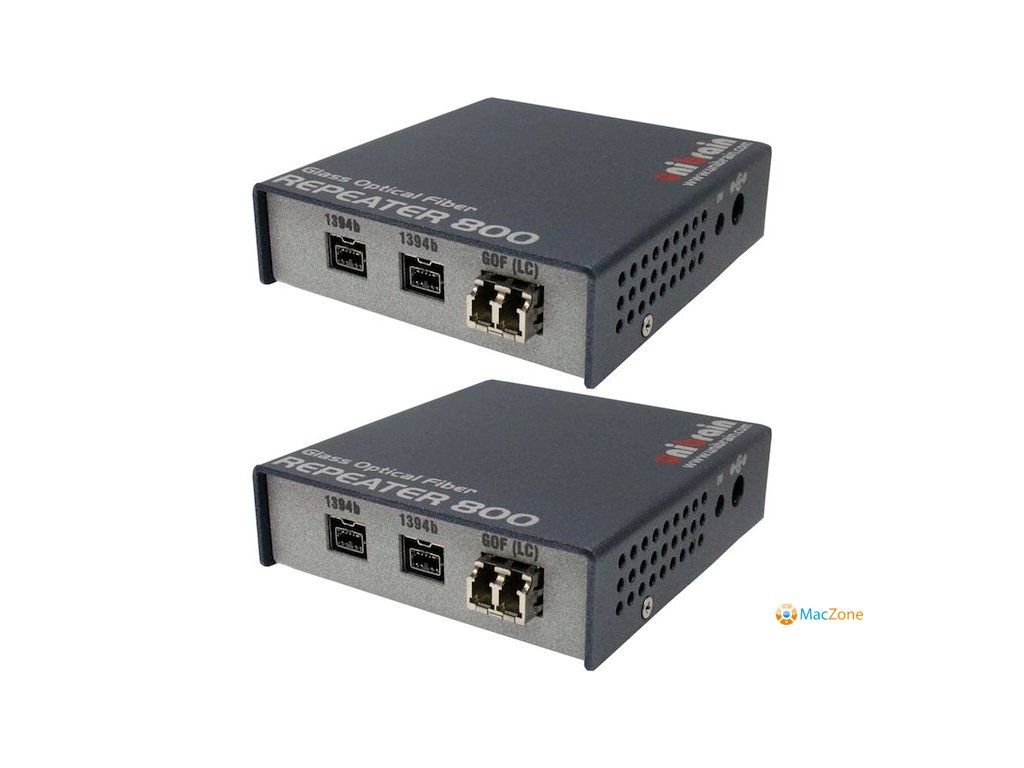

Unibrain FireWire 800 Glass Optical Fiber Repeater 800 optický extender FireWire

Detailní popis produktu

Unibrain Fire Wire 800 Glass Optical Fiber Repeater-800 optický extender FireWire 800 . Kompatibilní PC/ MAC / Linux . Prodloužení FireWire 800 pomocí optických LC-LC kabelů až na 550 metrů . Lze na koncových stranách redukovat na FireWire 400 pomocí kabelu 9-6 . Unibrain provides the Firewire users with the best Glass Optical Fiber (GOF) Repeater that extends the S800 (800Mbps) transmission of 1394b bus up to 550 meters distance over fiber optic cable. The GOF Repeater is equipped with the NEW TSB81BA3D, the latest revision of Texas Instruments’ 1394b PHY, providing fully reliable 1394b speed and configuration. Each GOF Repeater800™ unit has two (2) 1394b bilingual copper ports and one optical port LC type. Features Two (2) Fully Backward Compatible, (1394a-2000 Fully Compliant) Bilingual P1394b Cable Ports operating at 100/200/400/800 Megabits per Second (Mbits/s) One (1) 1394b optical port with LC type connector. Full Duplex Data Rate at 100/200/400/800 Mbps. Multi-Mode-Fiber (MMF) Glass optical fiber cable support. Maximum link length 550 meters. Operates in 1394a or 1394b connections with both PC or Macintosh. LC KIT: vysílač + příjmač LC GOF Repater800 a 2x zdroj DC +12V používá optické kabely mezi vysílačem a příjmačem Enhanced Glass Optical Fiber Connector LC duplex Connector optical interface. 850 nm Vertical cavity surface emitting laser. Maximum link lengths: 275 m Links in 62.5/125 µm MMF 200 MHz*km Cables 550 m Links in 50/125 µm MMF 500 MHz*km Cables
