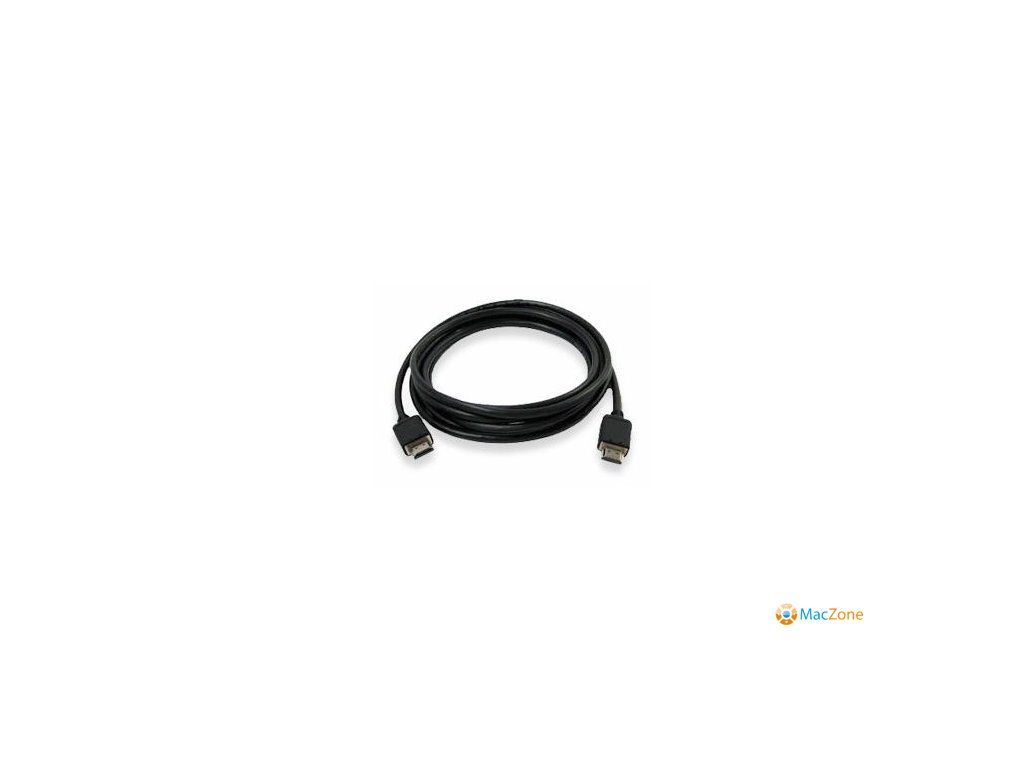

HDMI kabel M/M délka 5m ( type A ) , černý

Detailní popis produktu

The High-Definition Multi-media Interface (HDMI) is an industry-supported, uncompressed, all-digital audio/video interface. HDMI provides an interface between any compatible digital audio/video source, such as a set-top box, DVD player, and A/V receiver and a compatible digital audio and/or video monitor, such as a digital television (DTV).

HDMI supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. It is independent of the various HDTV standards such as ATSC, DVB(-T,-S,-C), as these are encapsulations of the MPEG data streams, which are passed off to a decoder, and output as uncompressed high-resolution video data. This video data is then encoded into TMDS for transmission digitally over HDMI. HDMI also includes support for 8-channel uncompressed digital audio. Beginning with version 1.2, HDMI now supports up to 8 channels of one bit audio. One bit audio is what is used on Super Audio CDs.

The standard Type A HDMI connector has 19 pins, and a higher resolution version called Type B, has been defined, although it is not yet in common use. Type B has 29 pins, allowing it to carry an expanded video channel for use with high-resolution displays. Type-B is designed to support resolutions higher than 1080i.

Type A HDMI is backwards-compatible with the single-link Digital Visual Interface (DVI) used on modern computer monitors and graphics cards. This means that a DVI source can drive an HDMI monitor, or vice versa, by means of a suitable adapter or cable, but the audio and remote control features of HDMI will not be available. Additionally, without support for HDCP, the video quality and resolution may be downgraded by the player unit. Type B HDMI is similarly backwards-compatible with dual-link DVI.
